Introduction

This Jet Turbine Engine is a simplified model consisting of 30 key components, designed to demonstrate the fundamental principles of air intake, compression, combustion, and thrust generation.

Part Modelling In Fusion 360

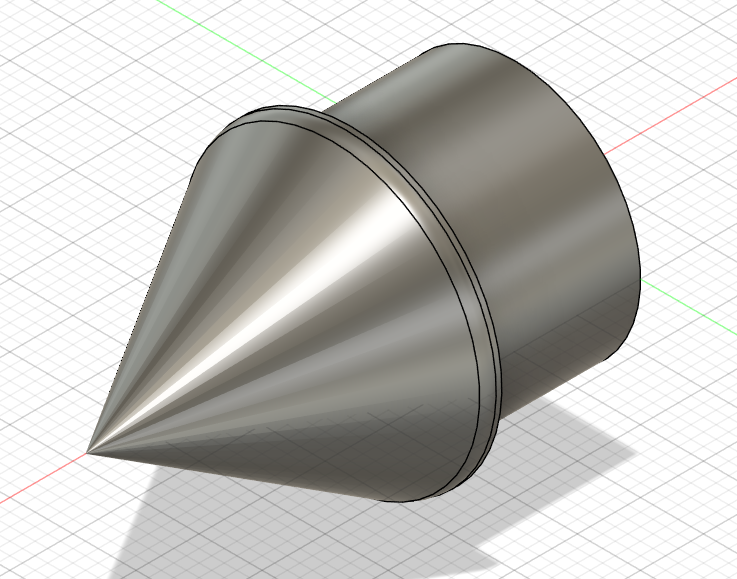

1.nose_cone

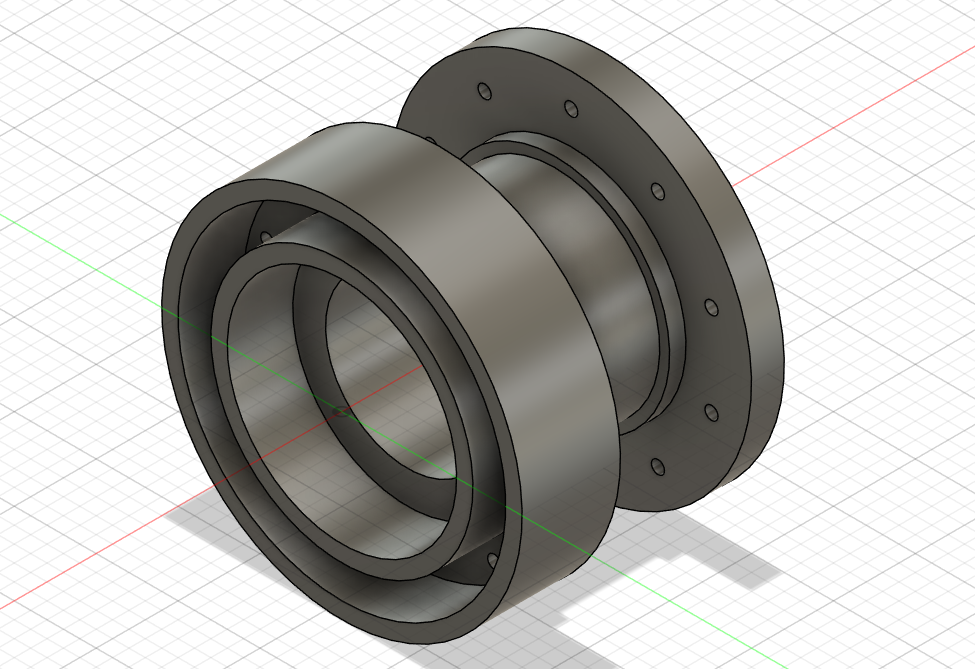

2.primary_turbine_bushing

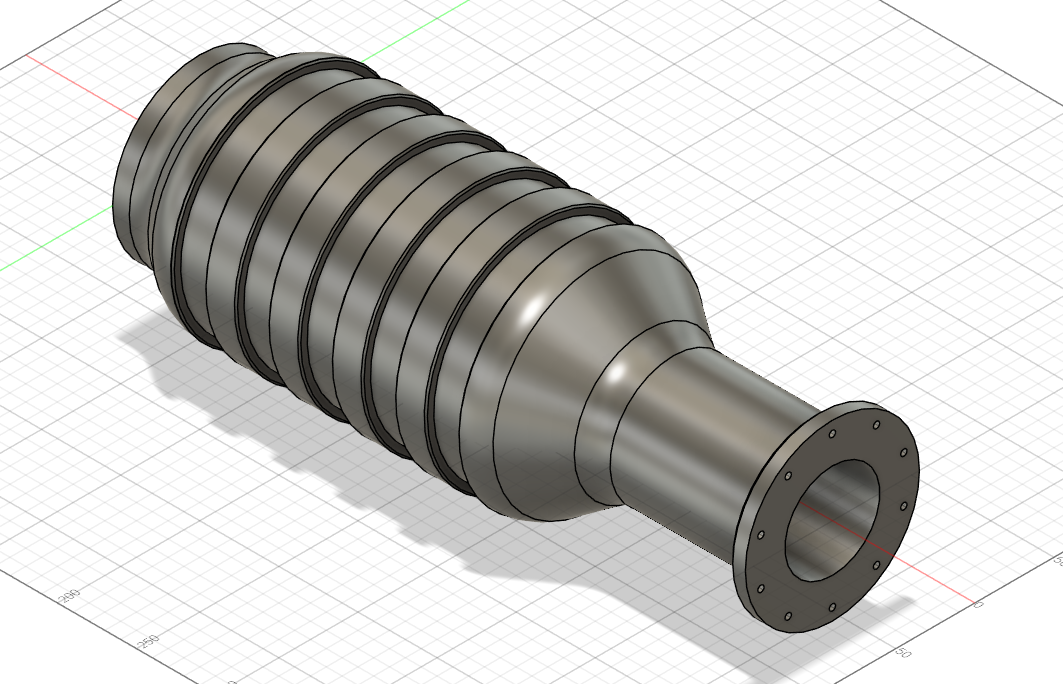

3.central_mounting_shaft

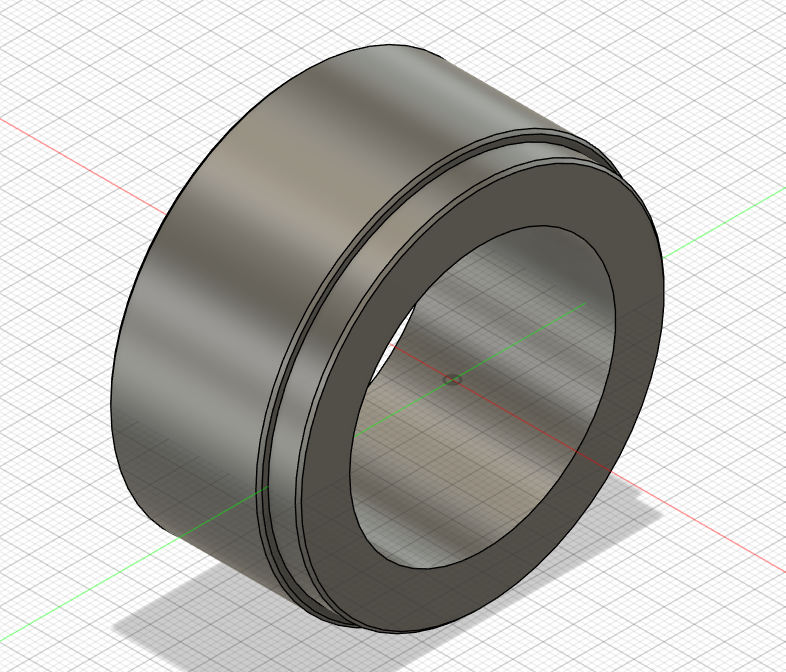

4.bearing

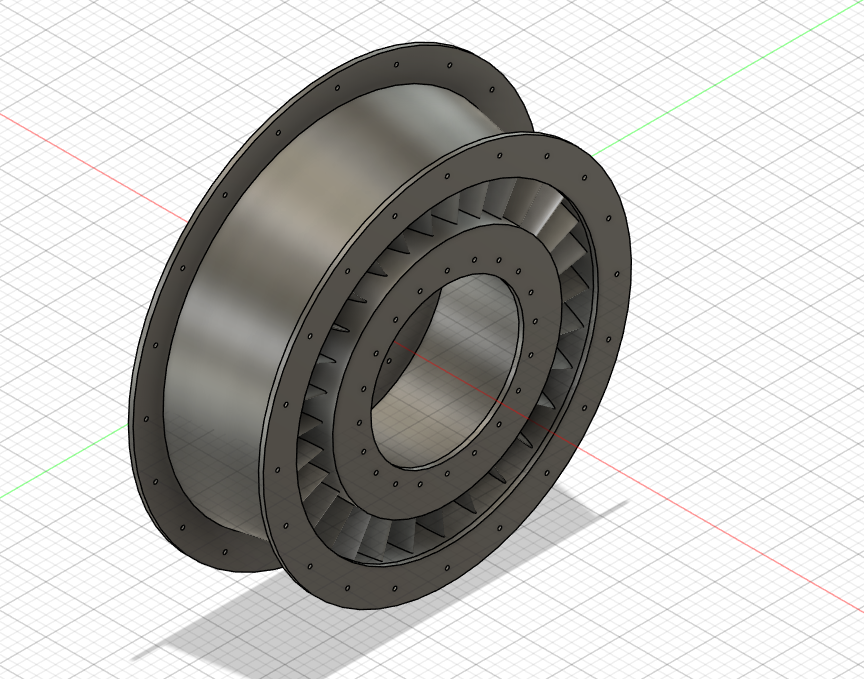

5.rear_case

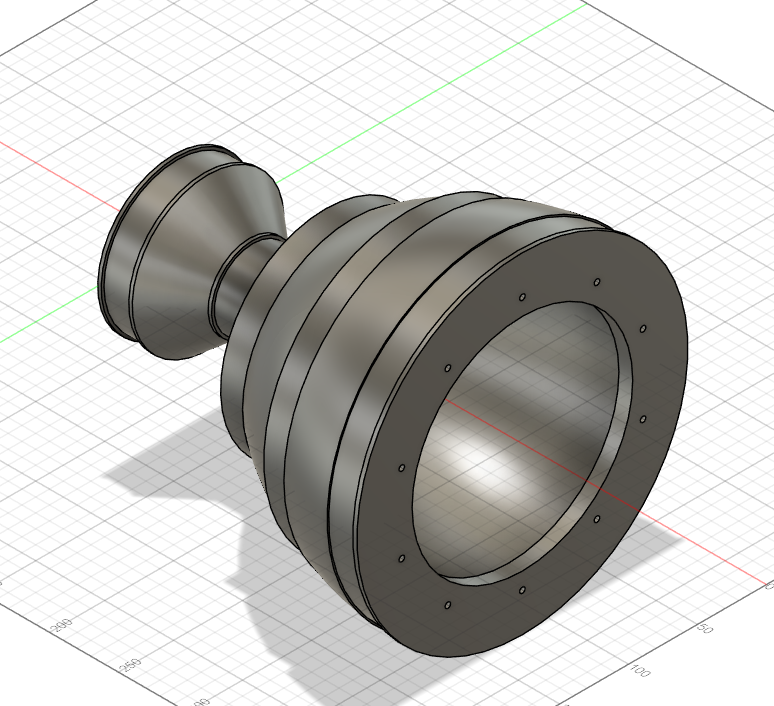

6.rear_mounting_shaft

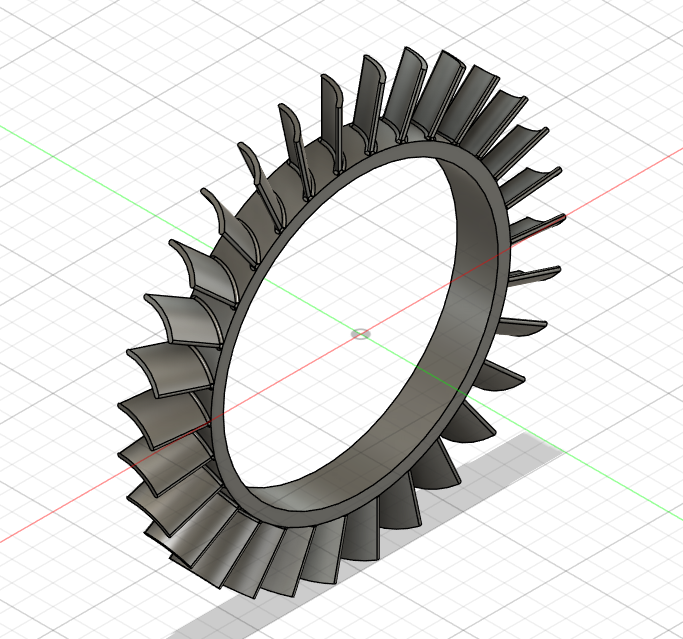

7.air_turbine_one

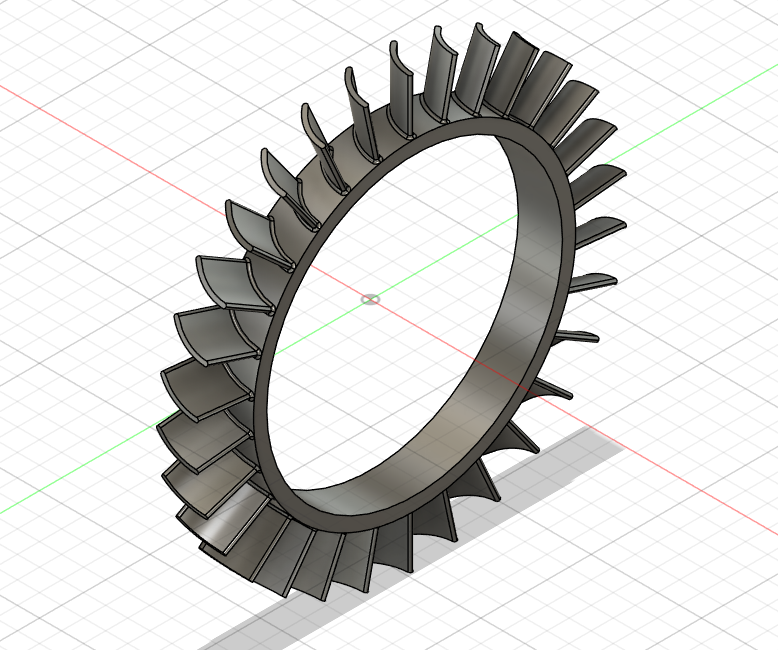

8.air_turbine_two

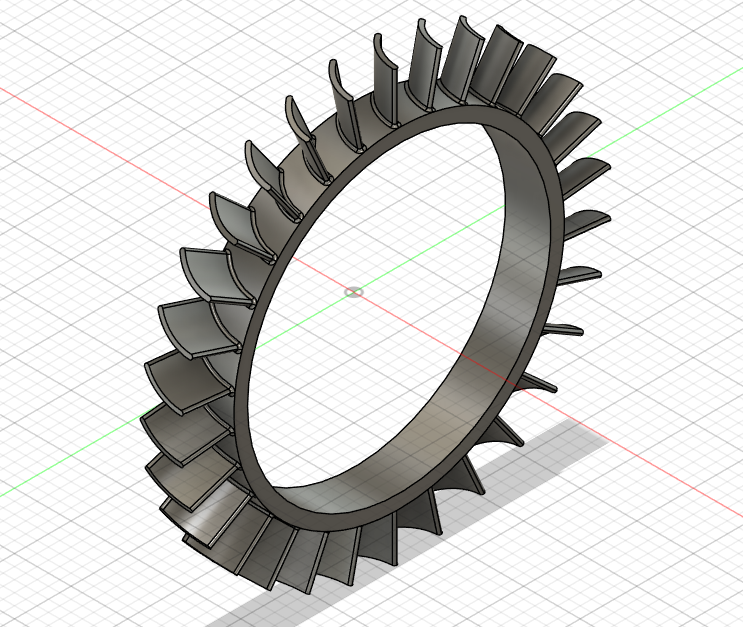

9.air_turbine_three

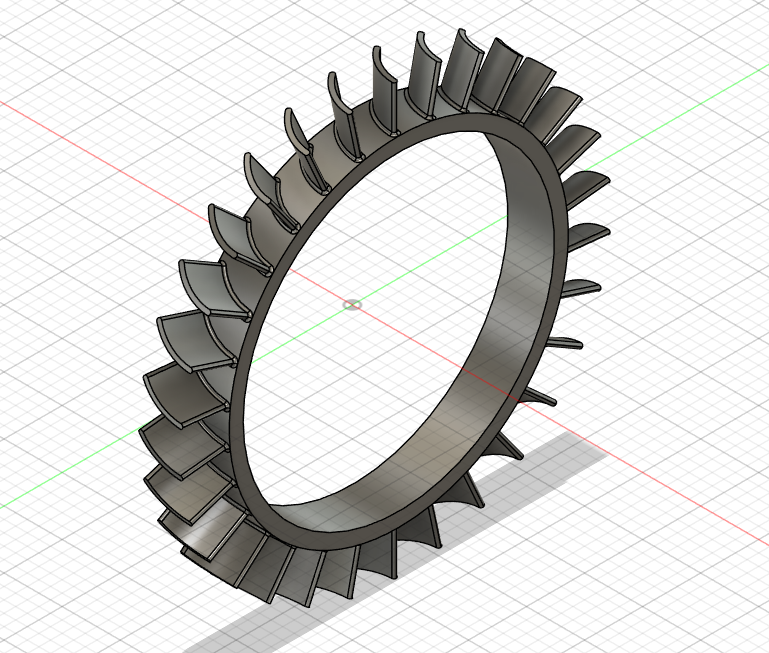

10.air_turbine_four

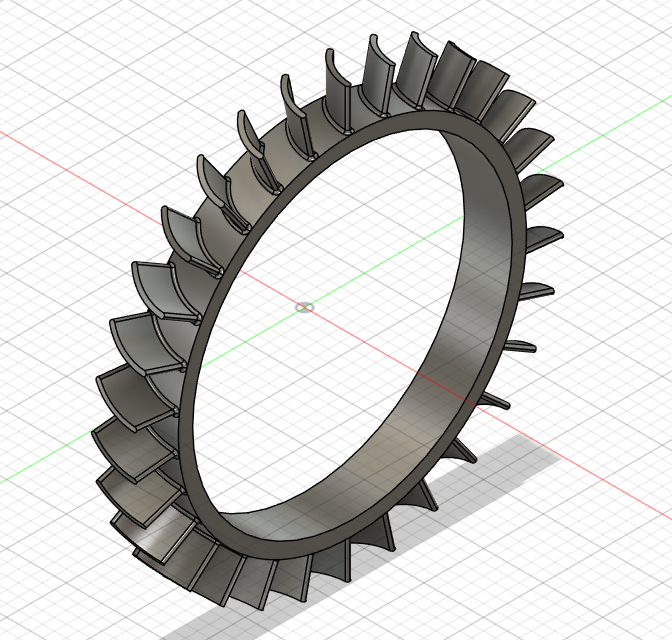

11.air_turbine_five

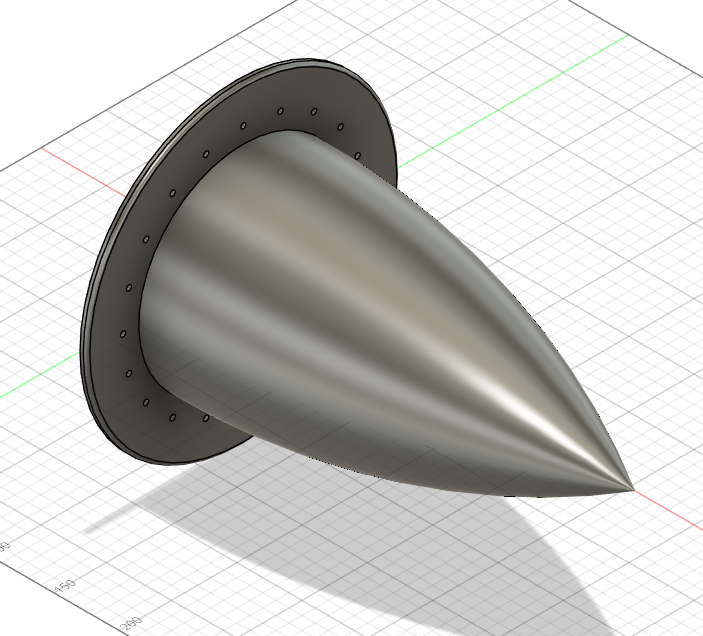

12.end_cone

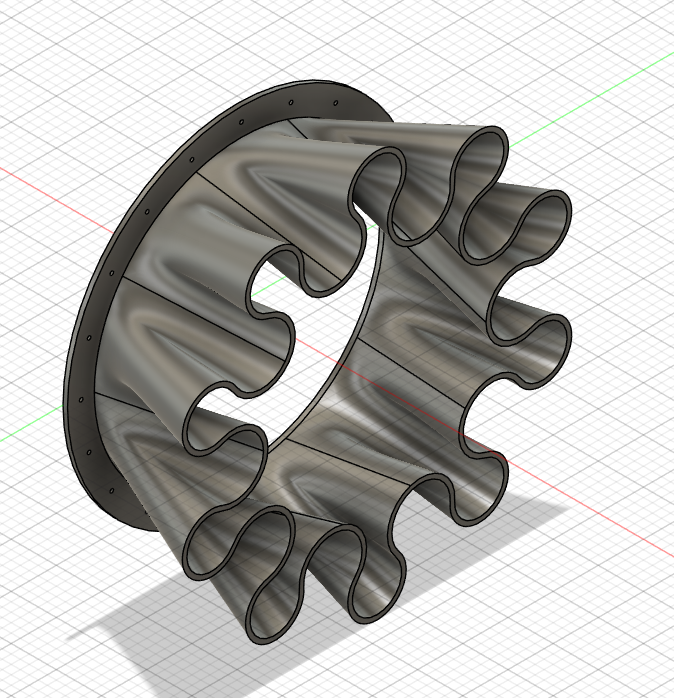

13.exhaust_case

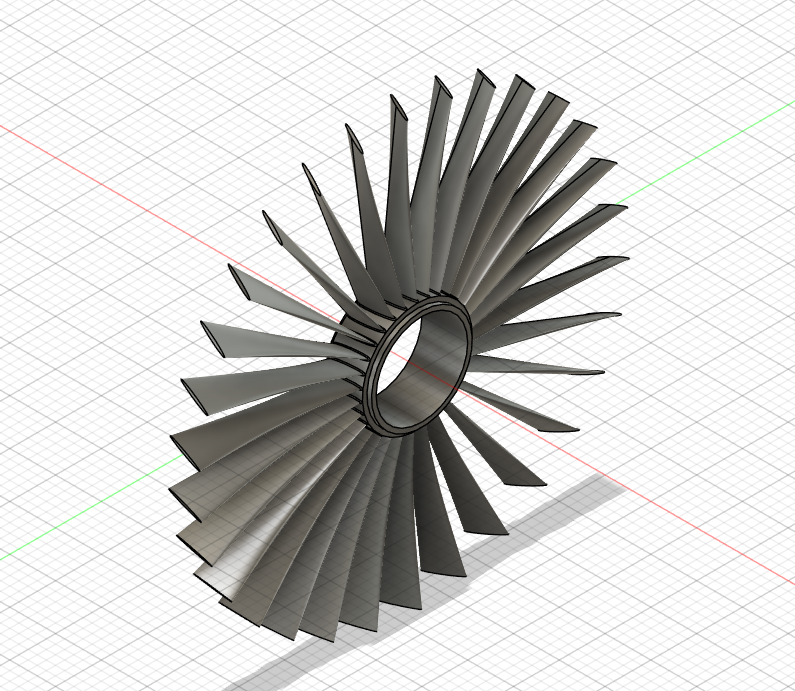

14.primary_turbine

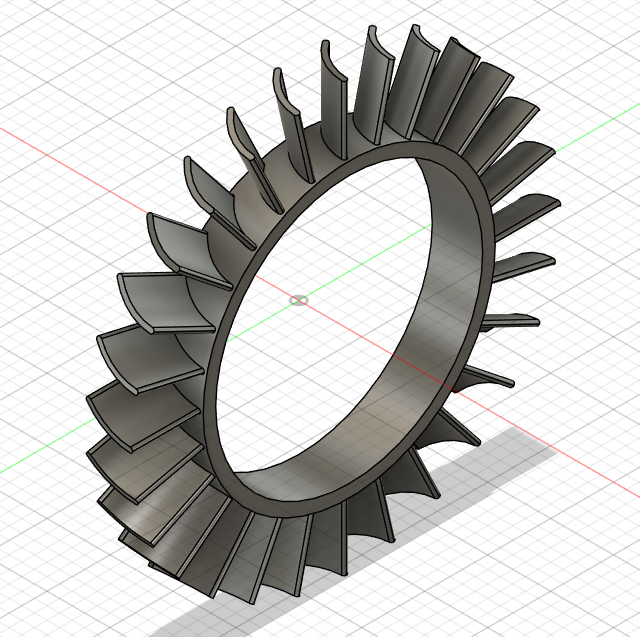

15.petrol_turbine_one

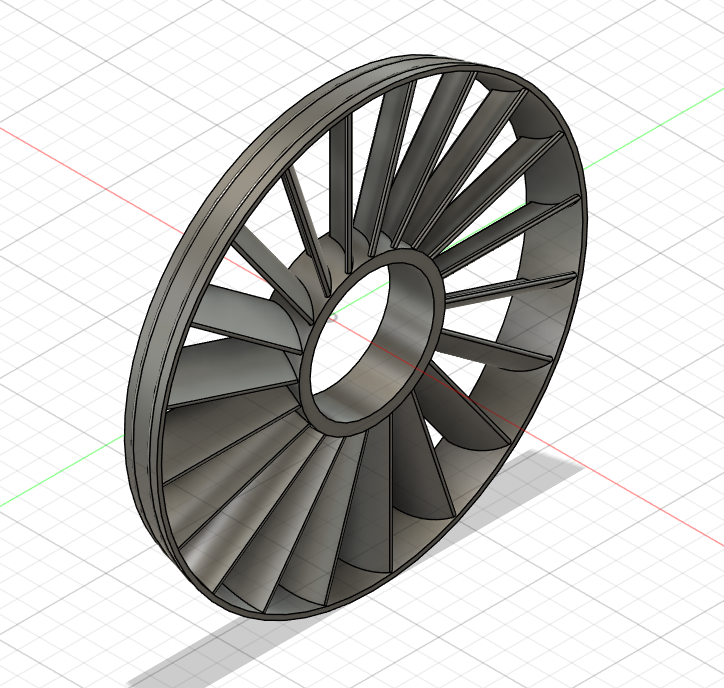

16.petrol_turbine_two

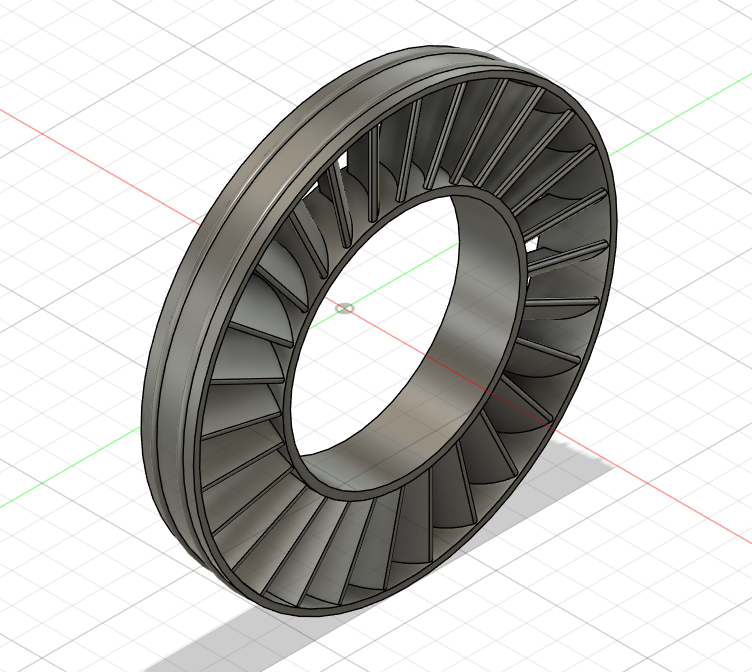

17.petrol_turbine_three

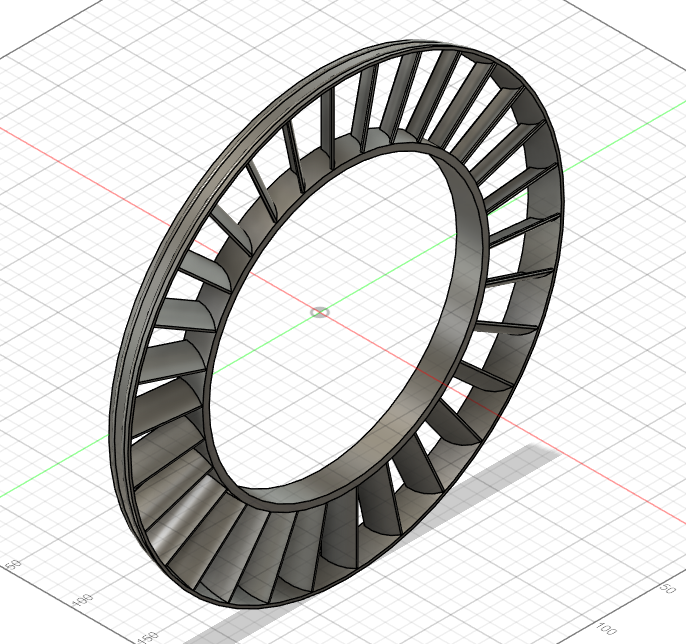

18.petrol_turbine_four

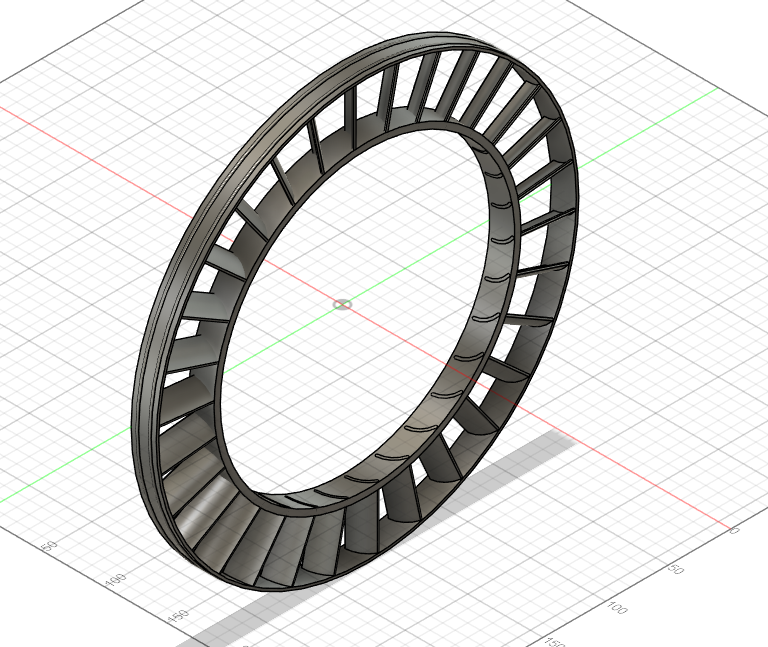

19.petrol_turbine_five

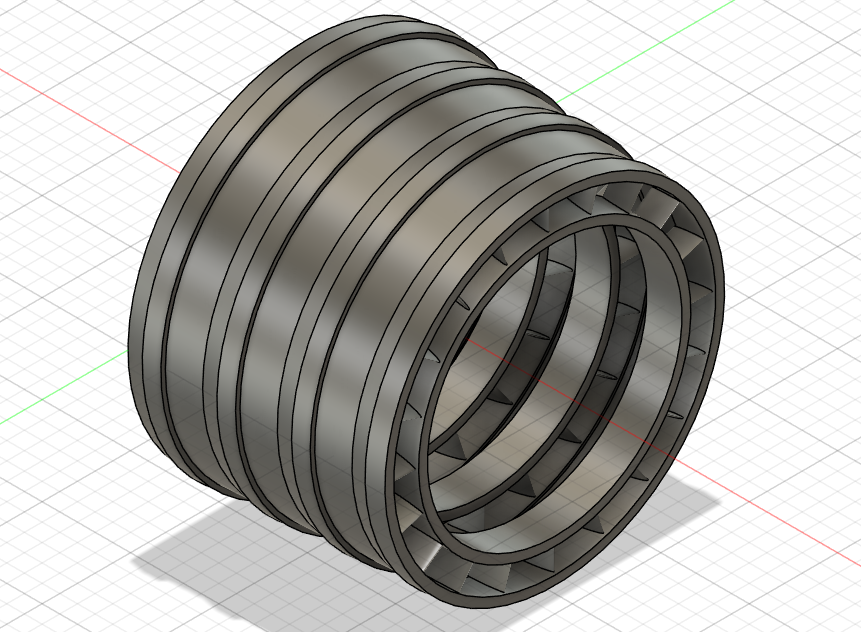

20.air_turbine_bracket

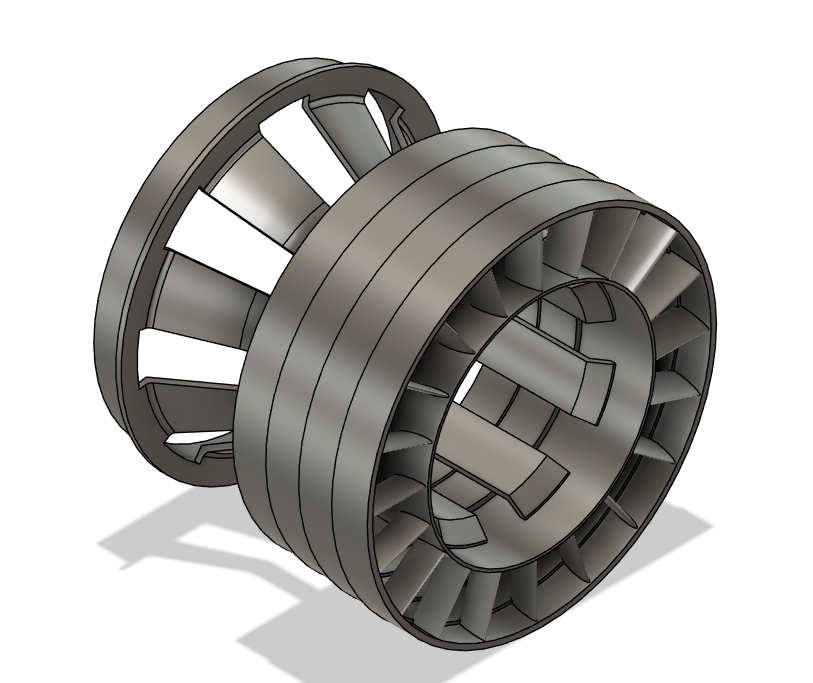

21.petrol_intake_bracket

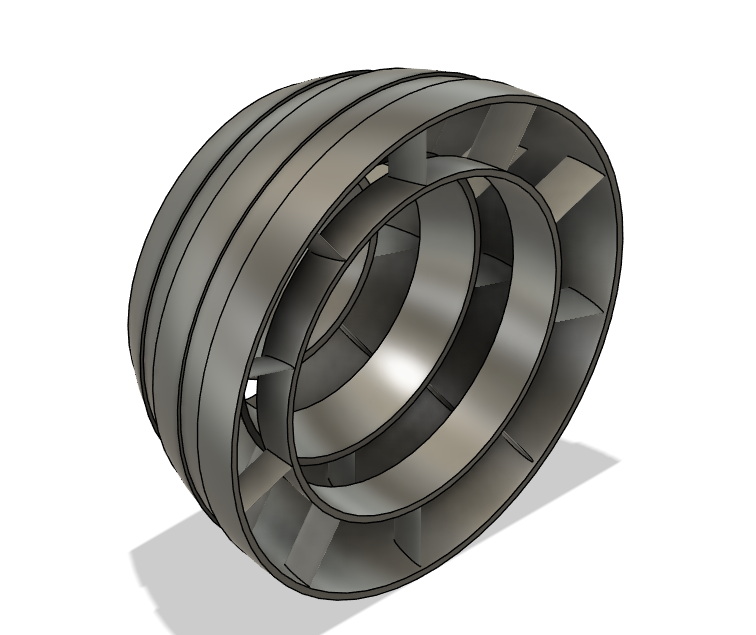

22.petrol_turbine_bracket

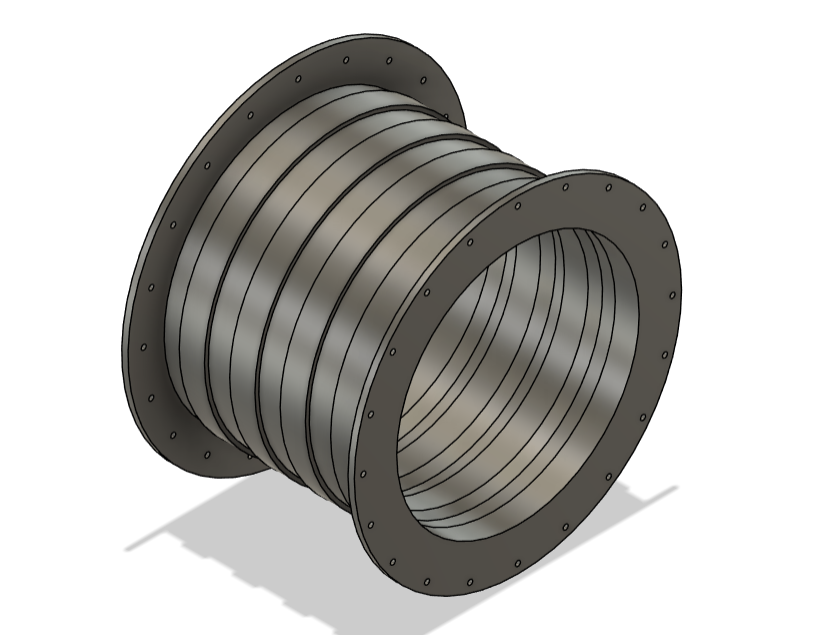

23.air_turbine_case

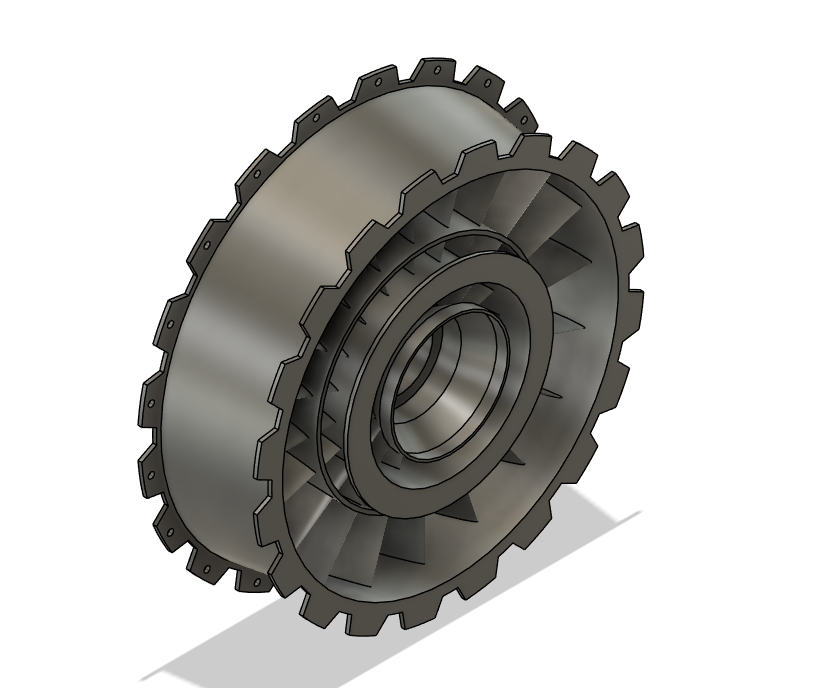

24.bearing_case

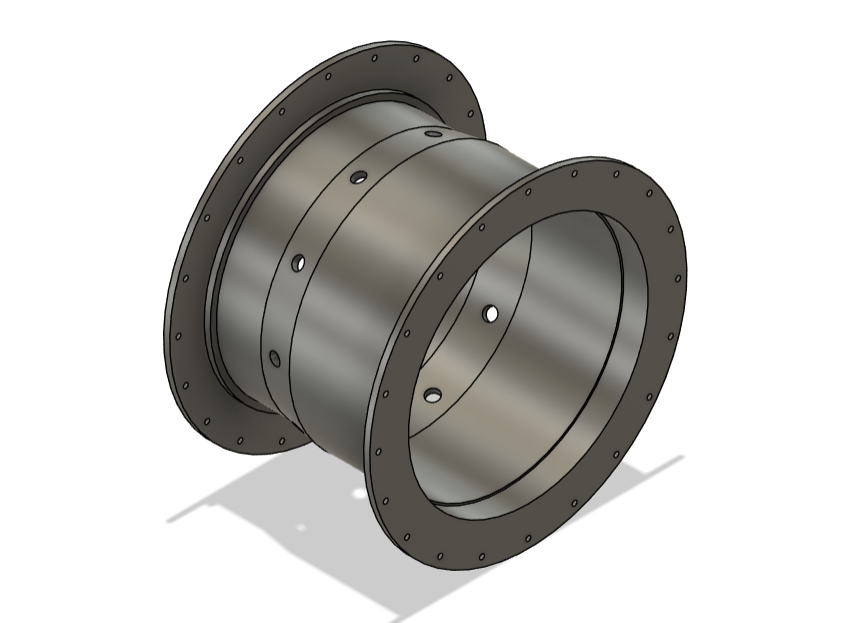

25.petrol_intake_case

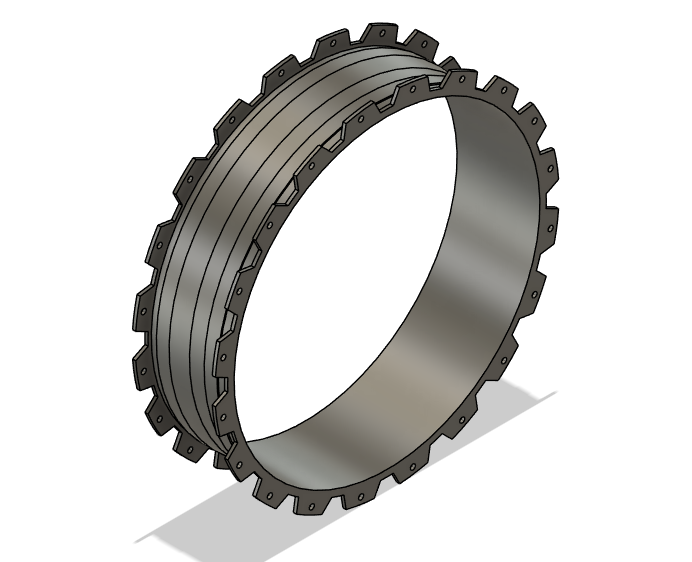

26.primary_turbine_case

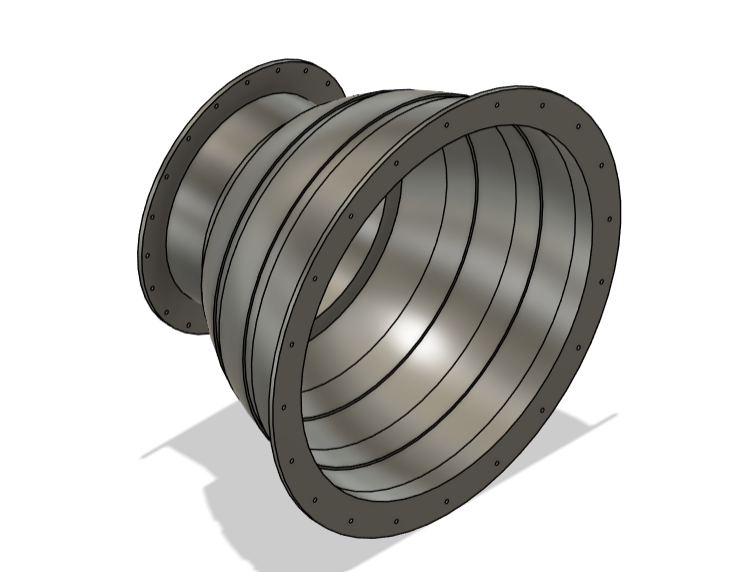

27.petrol_turbine_case

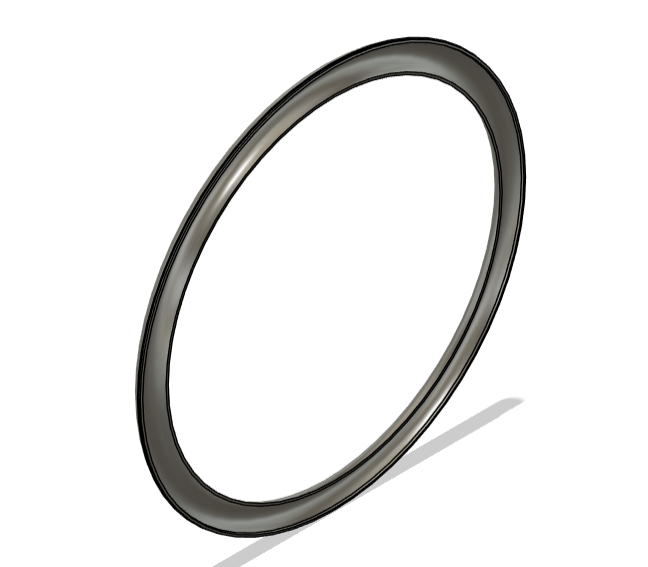

28.front_rim

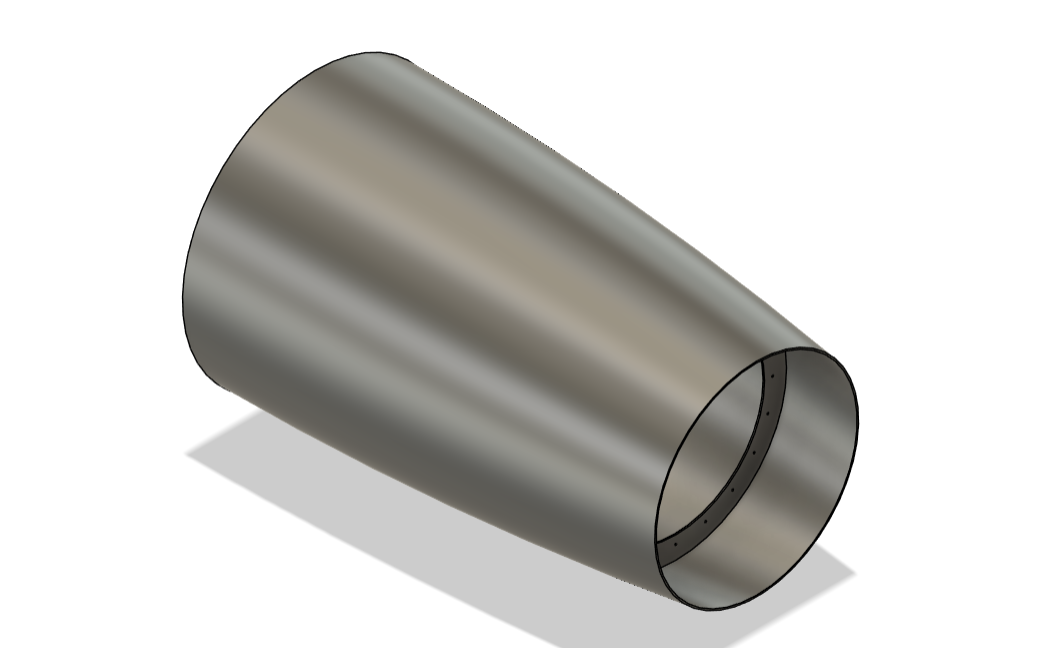

29.inner_body

Assembly In Fusion 360

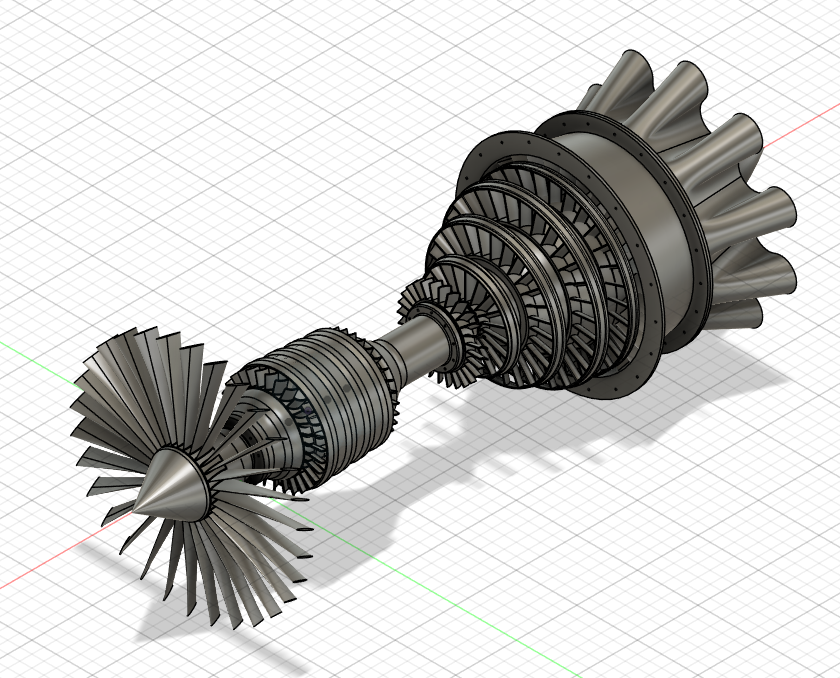

assembly

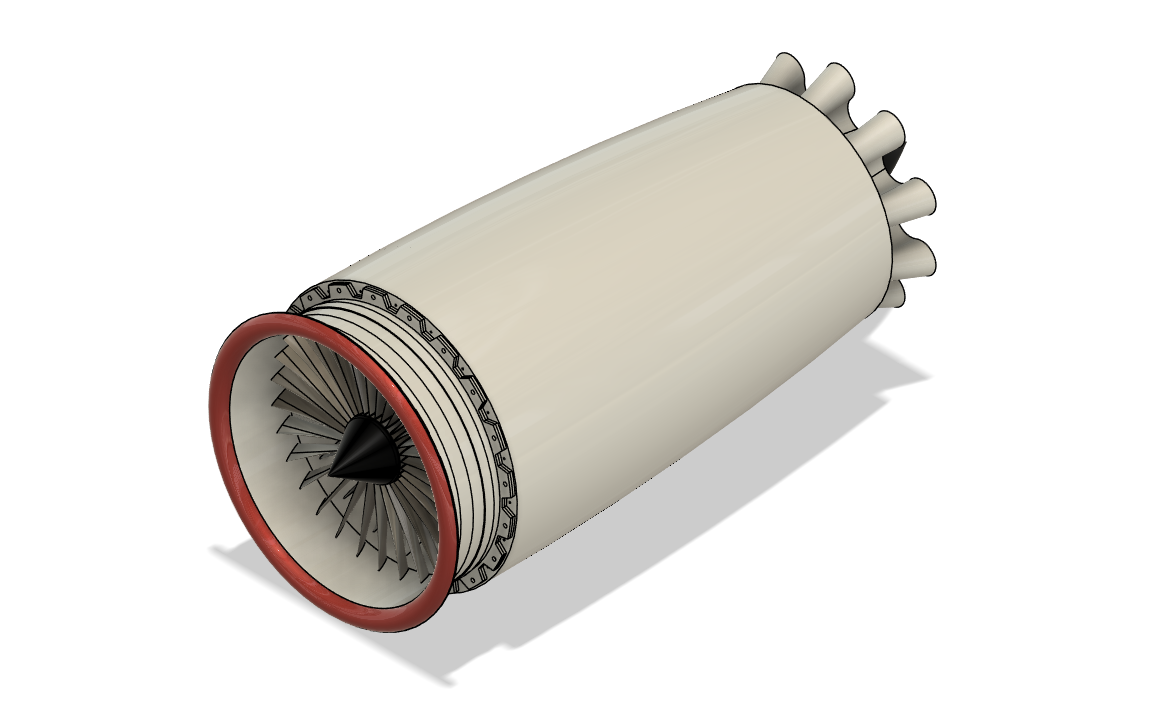

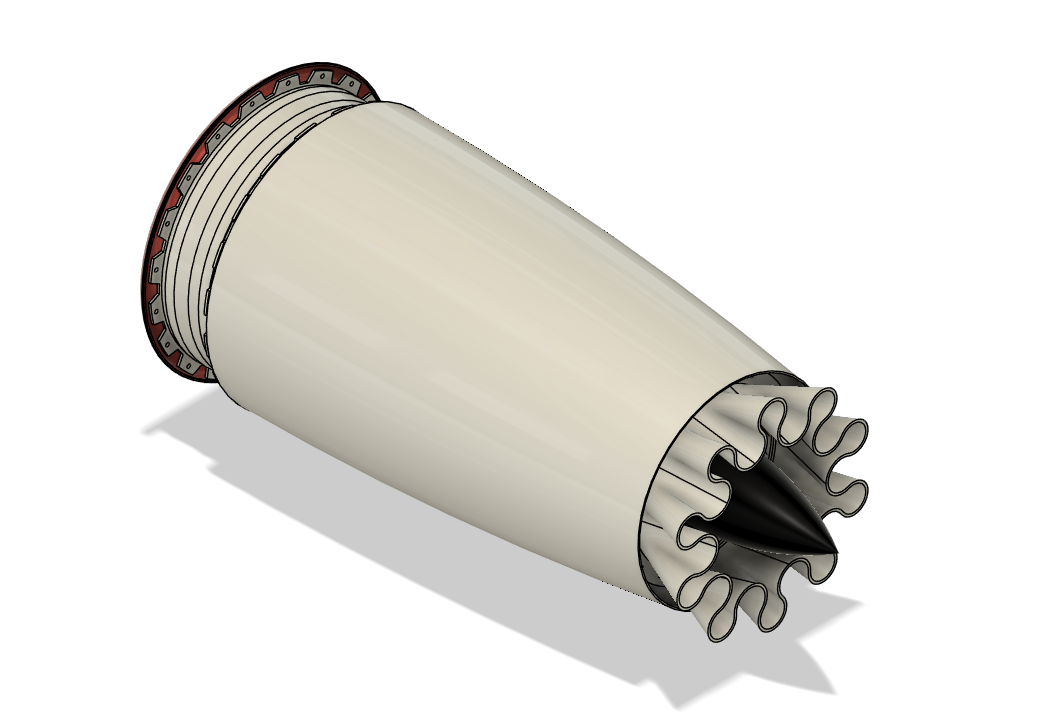

isometric_view

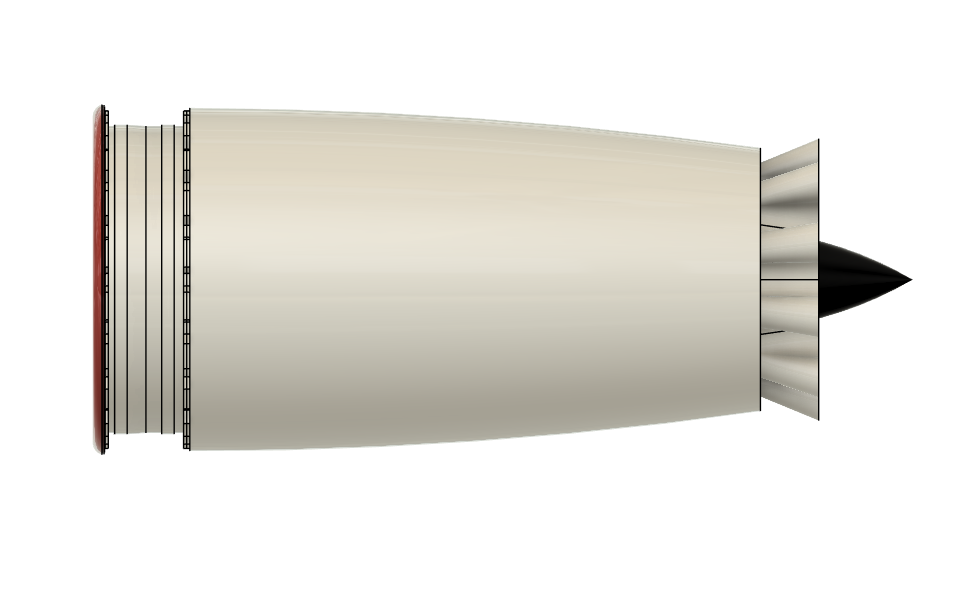

side_view

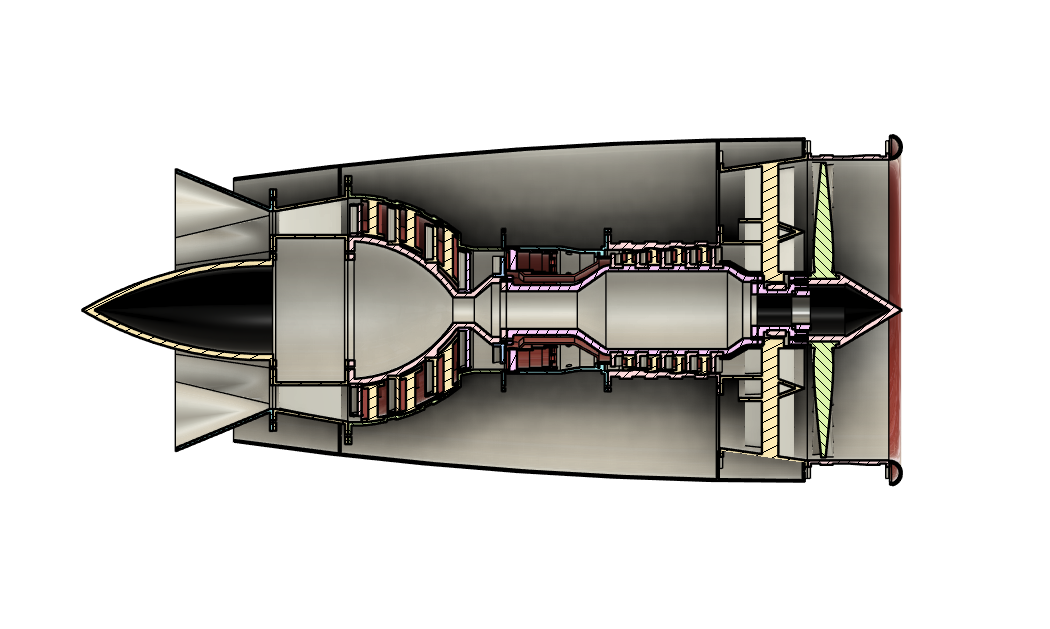

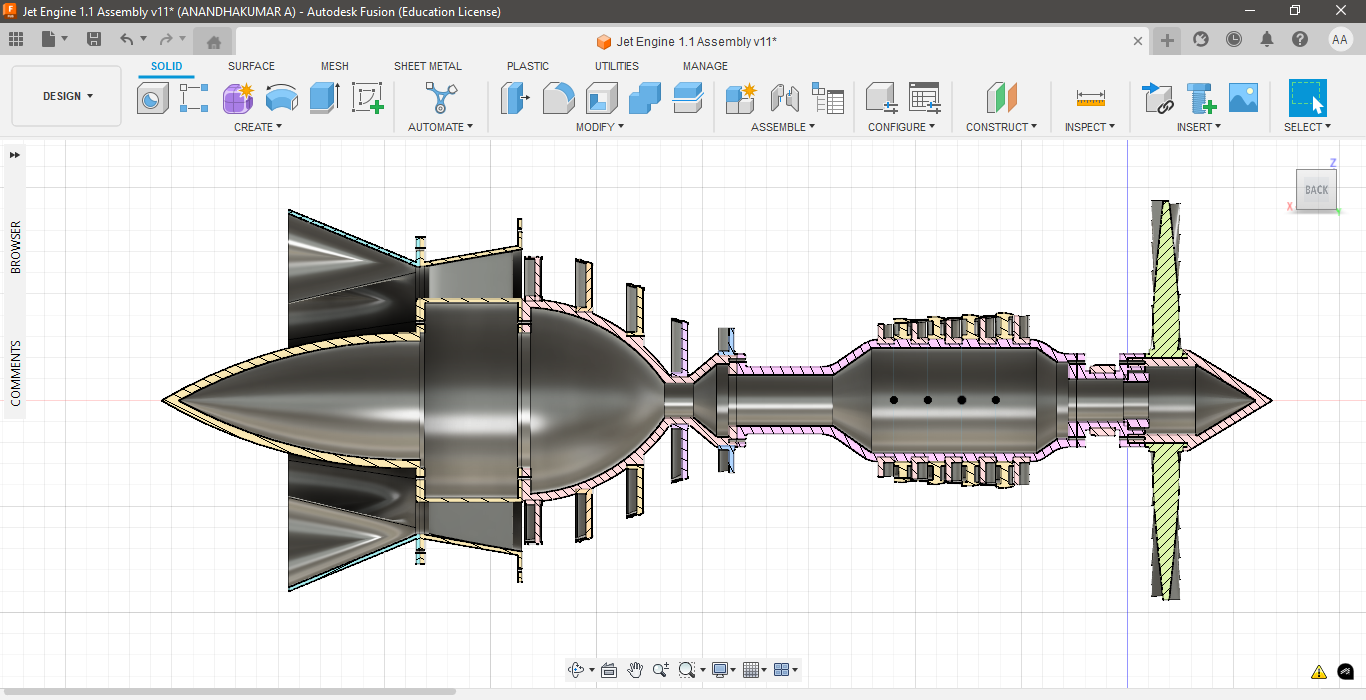

Cross_sectional_view
